Description

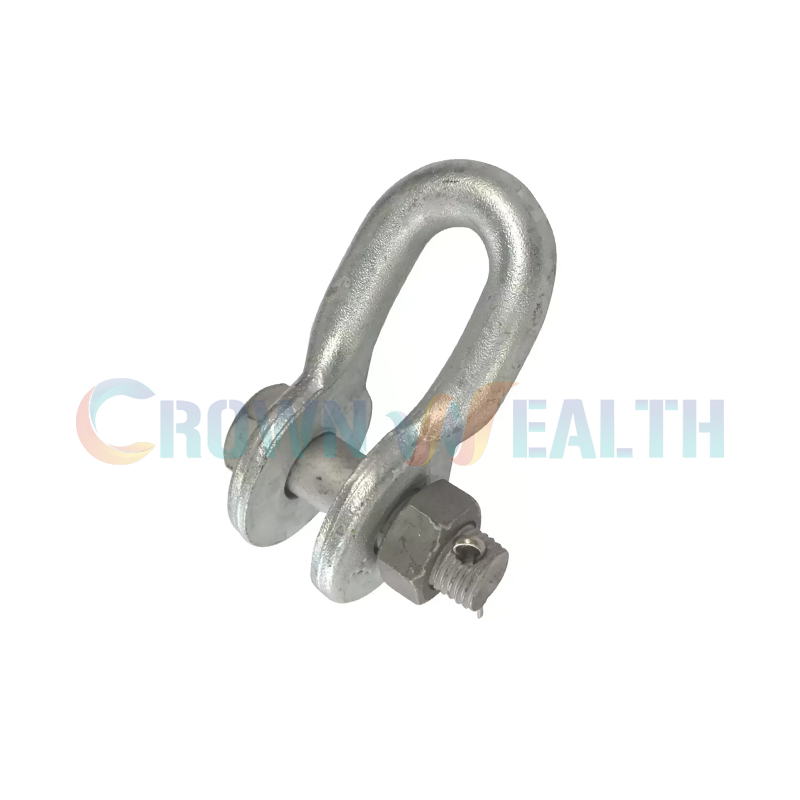

UL Type Anchor Shackle is used for connecting insulator string of transformer substation to overhead transmission line or fixing stranded wire to pole.
The cotter pin is made of stainless steel, other parts are made of hot-dip galvanized drop forged steel.
| Model | Dimension(mm) | Failing Load(KN) | Weight(kg) | ||||
| C | d | D | H | R | |||
| U-6 | 22 | 14 | 16 | 75 | 12 | 60 | 0.4 |
| U-7 | 20 | 16 | 16 | 80 | 10 | 70 | 0.5 |
| U-10 | 22 | 18 | 18 | 85 | 11 | 100 | 0.6 |
| U-12 | 24 | 22 | 20 | 90 | 12 | 120 | 1.0 |
| U-16 | 26 | 24 | 22 | 95 | 13 | 160 | 1.5 |
| UL-7 | 20 | 16 | 16 | 120 | 22 | 70 | 0.7 |
| UL-10 | 22 | 18 | 18 | 140 | 24 | 100 | 0.9 |
| UL-12 | 24 | 20 | 20 | 140 | 18 | 120 | 1.1 |
