Galvanized Strap Ties – Technical Specification & Product Overview
Product Description

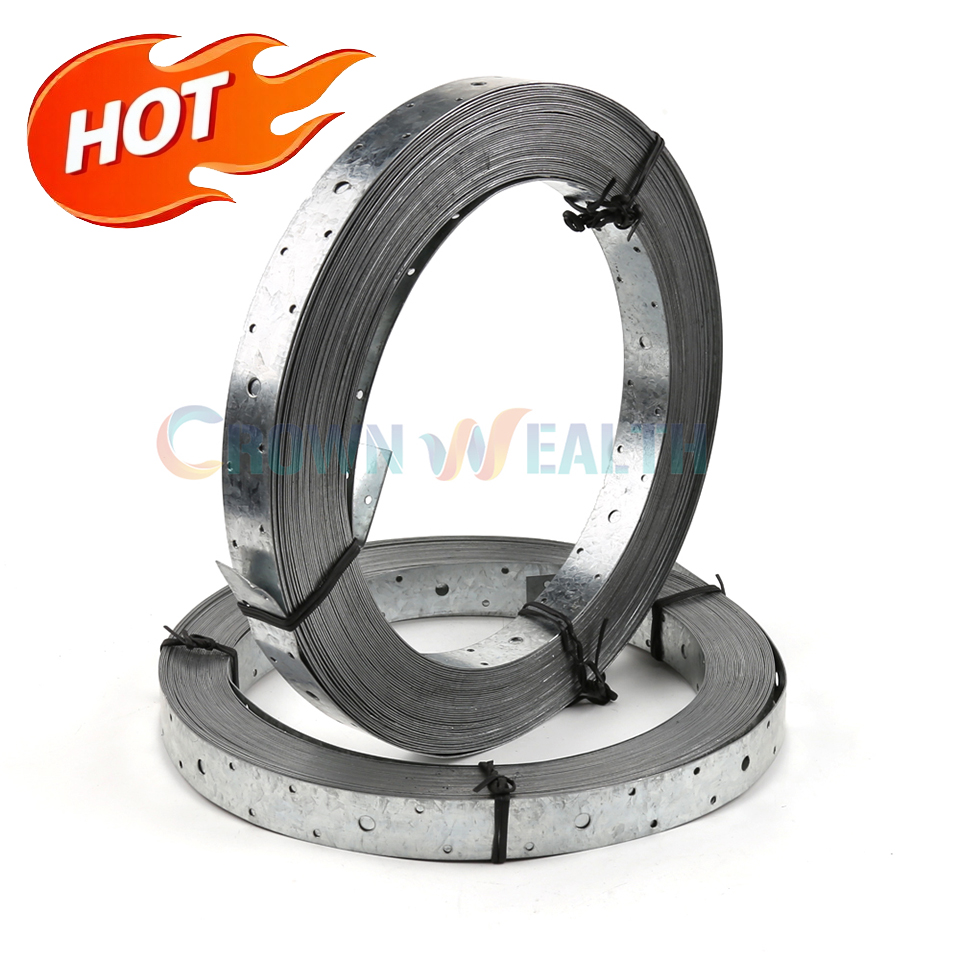

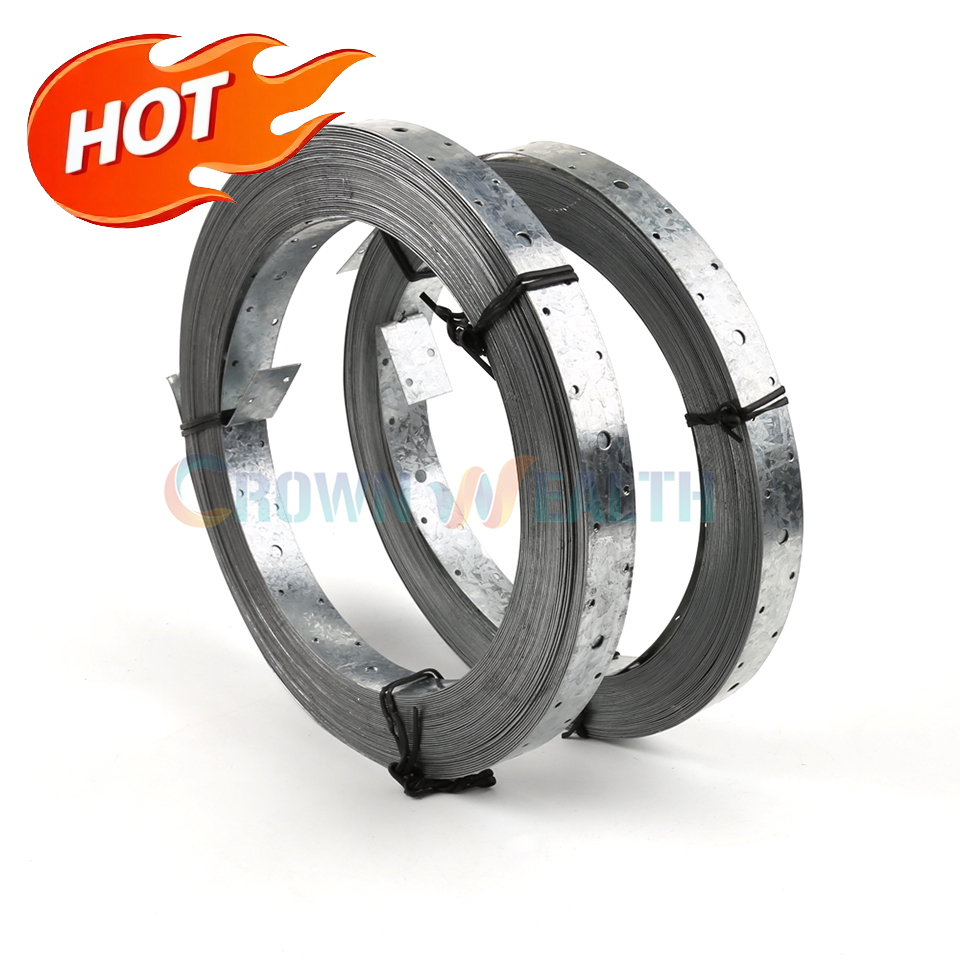

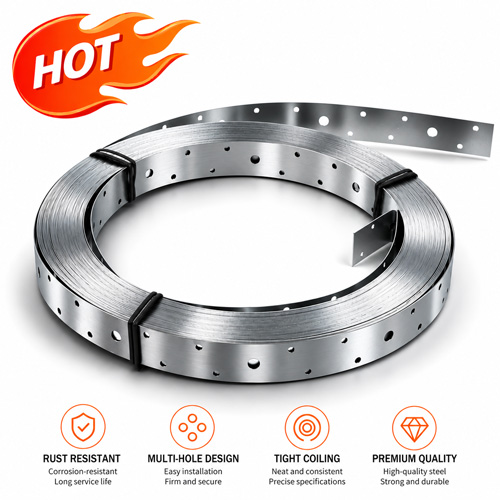

Galvanized Strap Ties are high-strength metal connectors designed to securely fasten ceiling joists to hanging beams, rafters to beams, and floor joists to bearers. Engineered for durability and corrosion resistance, these straps provide essential structural reinforcement in residential, commercial, and industrial construction applications.
Material Specification
-
Material: Galvanized Steel
-
Grade: SGC340 + Z275
-
SGC340: Structural galvanized steel with minimum yield strength of 340 MPa
-
Z275: Zinc coating of 275 g/m² for superior corrosion resistance (meets ASTM A653 / EN 10147 standards)
-

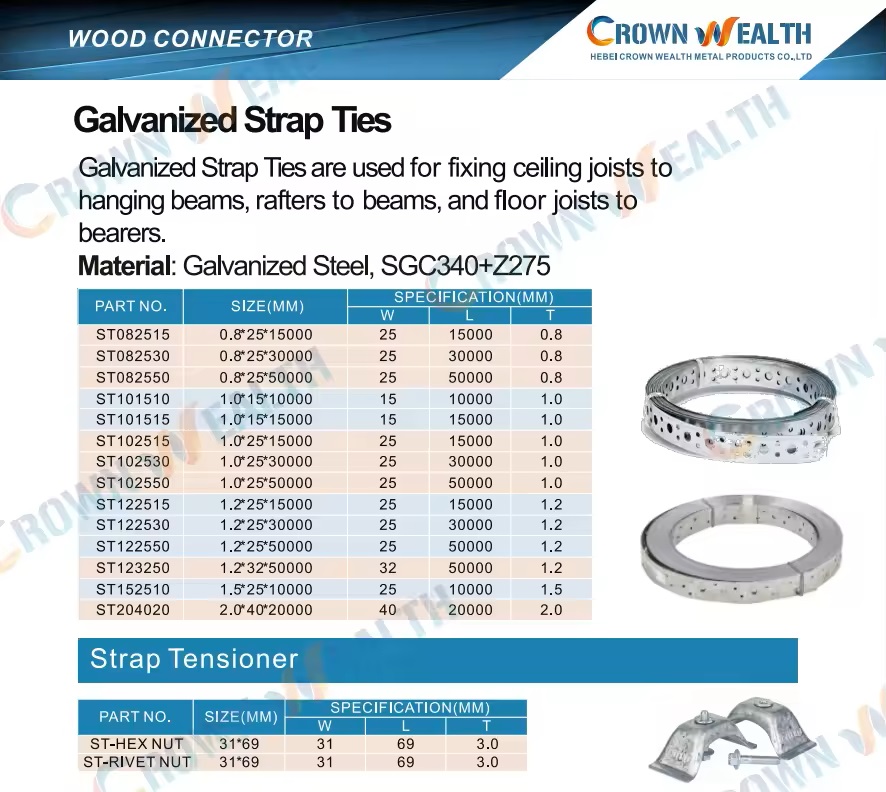

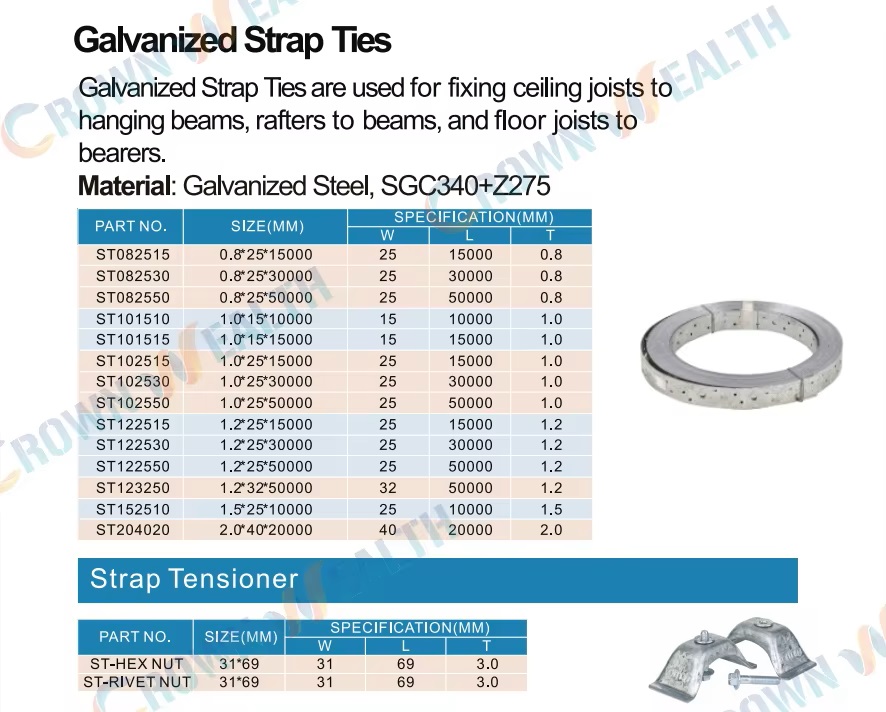

Standard Sizes & Dimensions
Galvanized Strap Ties
|
Part No. |
Size (mm) |
Width (W) mm |
Length (L) mm |
Thickness (T) mm |
|---|---|---|---|---|
|
ST082515 |
0.8×25×15000 |
25 |
15,000 |
0.8 |
|
ST082530 |
0.8×25×30000 |
25 |
30,000 |
0.8 |
|
ST082550 |
0.8×25×50000 |
25 |
50,000 |
0.8 |
|
ST101510 |
1.0×15×10000 |
15 |
10,000 |
1.0 |
|
ST101515 |
1.0×15×15000 |
15 |
15,000 |
1.0 |
|
ST102515 |
1.0×25×15000 |
25 |
15,000 |
1.0 |
|
ST102530 |
1.0×25×30000 |
25 |
30,000 |
1.0 |
|
ST102550 |
1.0×25×50000 |
25 |
50,000 |
1.0 |
|
ST122515 |
1.2×25×15000 |
25 |
15,000 |
1.2 |
|
ST122530 |
1.2×25×30000 |
25 |
30,000 |
1.2 |
|
ST122550 |
1.2×25×50000 |
25 |
50,000 |
1.2 |
|
ST123250 |
1.2×32×50000 |
32 |
50,000 |
1.2 |
|
ST152510 |
1.5×25×10000 |
25 |
10,000 |
15 . |
|
ST204020 |
2.0×40×20000 |
40 |
20,000 |
2.0 |
Note: All dimensions are in millimeters (mm). Custom lengths and thicknesses available upon request.
Strap Tensioner Accessories
To ensure proper installation and tensioning of galvanized strap ties, we provide compatible Strap Tensioners:
Strap Tensioner Components
|
Part No. |
Size (mm) |
Width (W) mm |
Length (L) mm |
Thickness (T) mm |
|---|---|---|---|---|
|
ST-HEX NUT |
31×69 |
31 |
69 |
3.0 |
|
ST-RIVET NUT |
31×69 |
31 |
69 |
3.0 |
Application: These tensioners are used to secure and tighten strap ties to structural members, ensuring optimal load transfer and joint stability.
Key Features
-
High corrosion resistance with Z275 galvanized coating
-
Meets structural steel standards (SGC340) for strength and durability
-
Available in multiple widths, lengths, and thicknesses for versatile applications
-
Compatible with standard tensioning hardware (ST-HEX NUT / ST-RIVET NUT)
-
Ideal for roof, floor, and ceiling framing systems
-
Easy to install with standard tools and fasteners

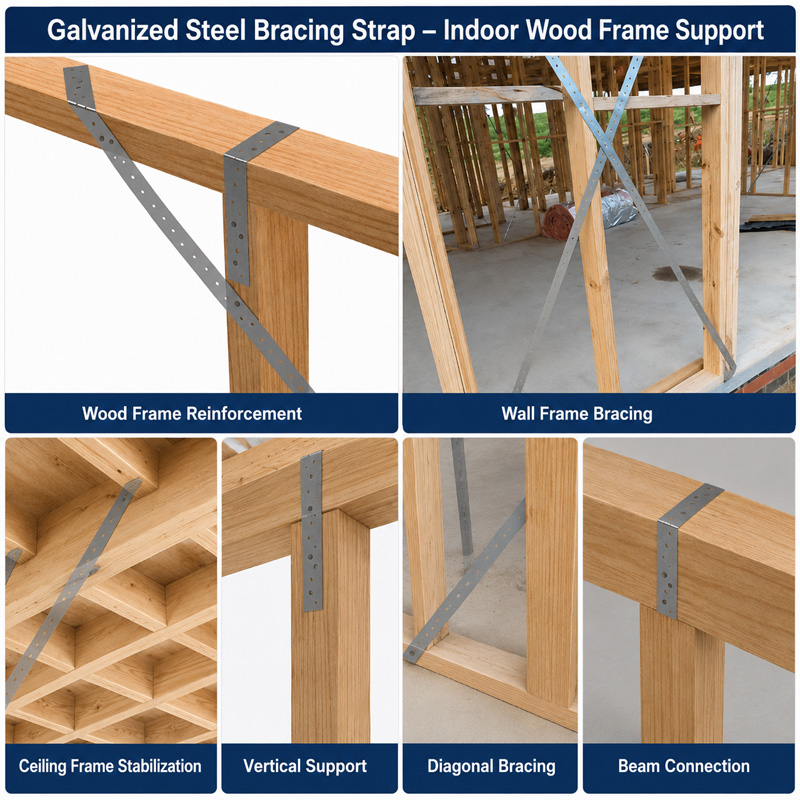

Applications
-
Residential and commercial building construction
-
Roof truss systems (rafters to beams)
-
Floor framing (joists to bearers)
-
Ceiling suspension systems (joists to hanging beams)
-
Agricultural and industrial structures requiring durable metal connections
Packaging & Delivery
-

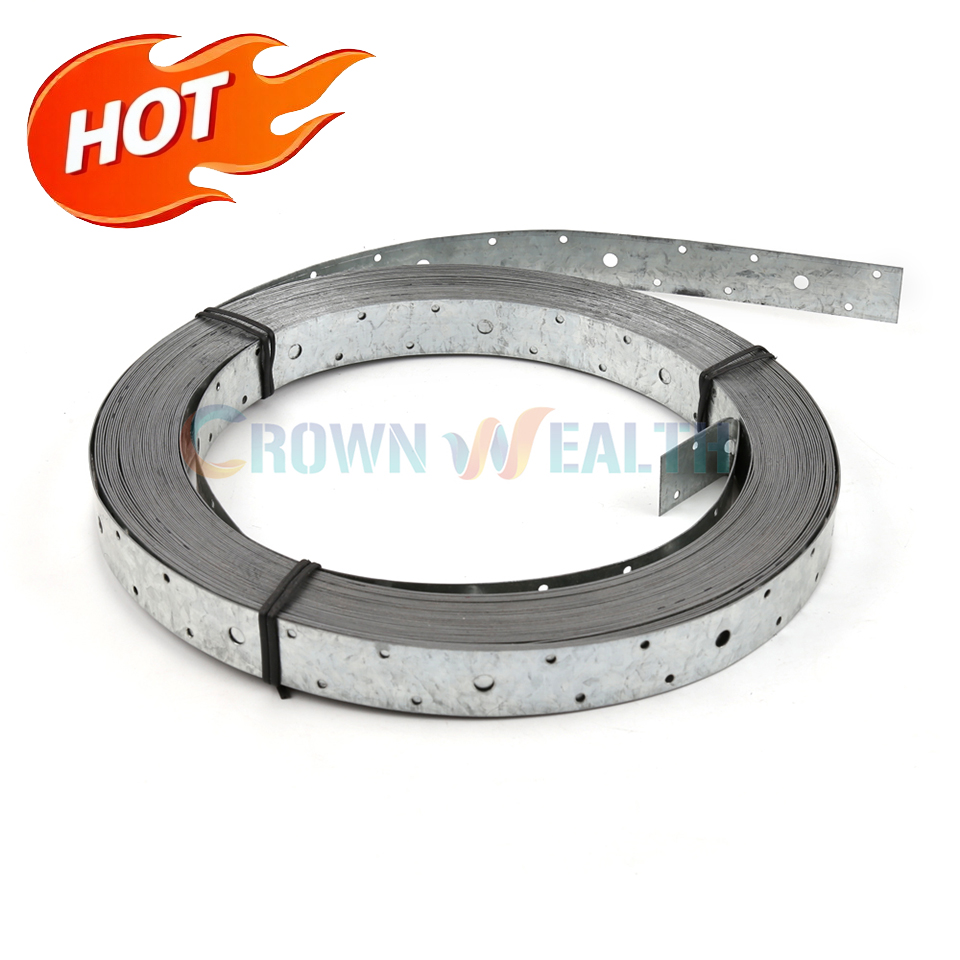

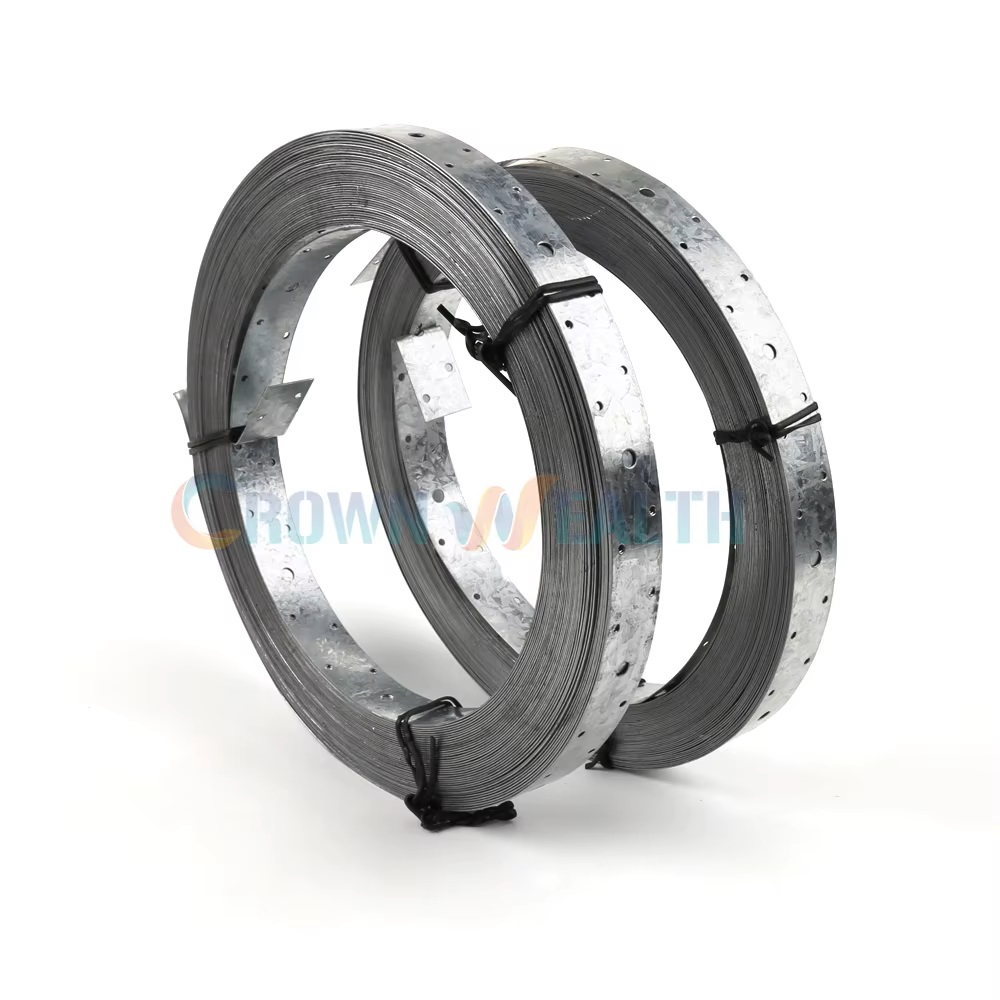

Straps are supplied in coil form for easy handling and on-site cutting
-
Packed in weather-resistant materials to prevent damage during transit
-
Standard lead time: 7–14 days upon order confirmation
-
Bulk discounts available for large volume orders
Compliance & Certifications
-
Manufactured in accordance with ASTM A653 / ISO 1461 standards
-
Compliant with international building code requirements for structural connections
-
Tested for tensile strength, elongation, and zinc coating adhesion
