Product Catalog: CW-ARB Series Steel Fixing Bands

Overview

The CW-ARB series consists of high-performance steel fixing bands engineered for superior strength and durability. Designed to meet rigorous fastening requirements, these bands serve as a reliable solution for securing cables, pipes, and structural components across industrial, commercial, and outdoor environments.

1. Product Features & Benefits

• Premium Material:​ Manufactured from high-tensile strength steel, offering exceptional resistance to stretching, deformation, and breakage under sustained tension.

• Advanced Corrosion Protection:

  • Galvanized Series:​ Features a thick zinc coating (via hot-dip or electroplating) that effectively withstands rain, moisture, salt spray, and industrial pollutants.

  • Coated Series:​ Includes a durable polymer layer (Polyester/PVC) that provides UV stability and enhanced chemical resistance.

• Engineered Design:

  • Perforated Structure:​ Equipped with evenly spaced round holes for rapid fastening using cable ties, bolts, or specialized tools, significantly improving installation efficiency.

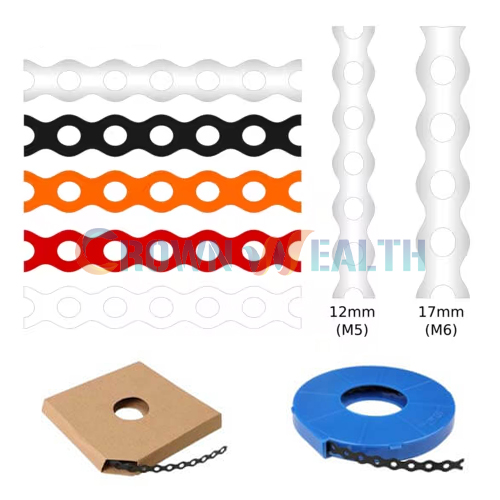

  • Edge Profiles:​ Available in Wavy​ (increased friction and grip to prevent slippage) or Straight​ (easier cutting and flatter finish) designs to suit specific application needs.

• Customization & Value:​ Direct factory supply ensures competitive pricing. We support custom orders for width, length, coating color, and hole spacing.

2. Product Series & Technical Specifications

All bands are supplied in standard 10-meter (10,000 mm) rolls.

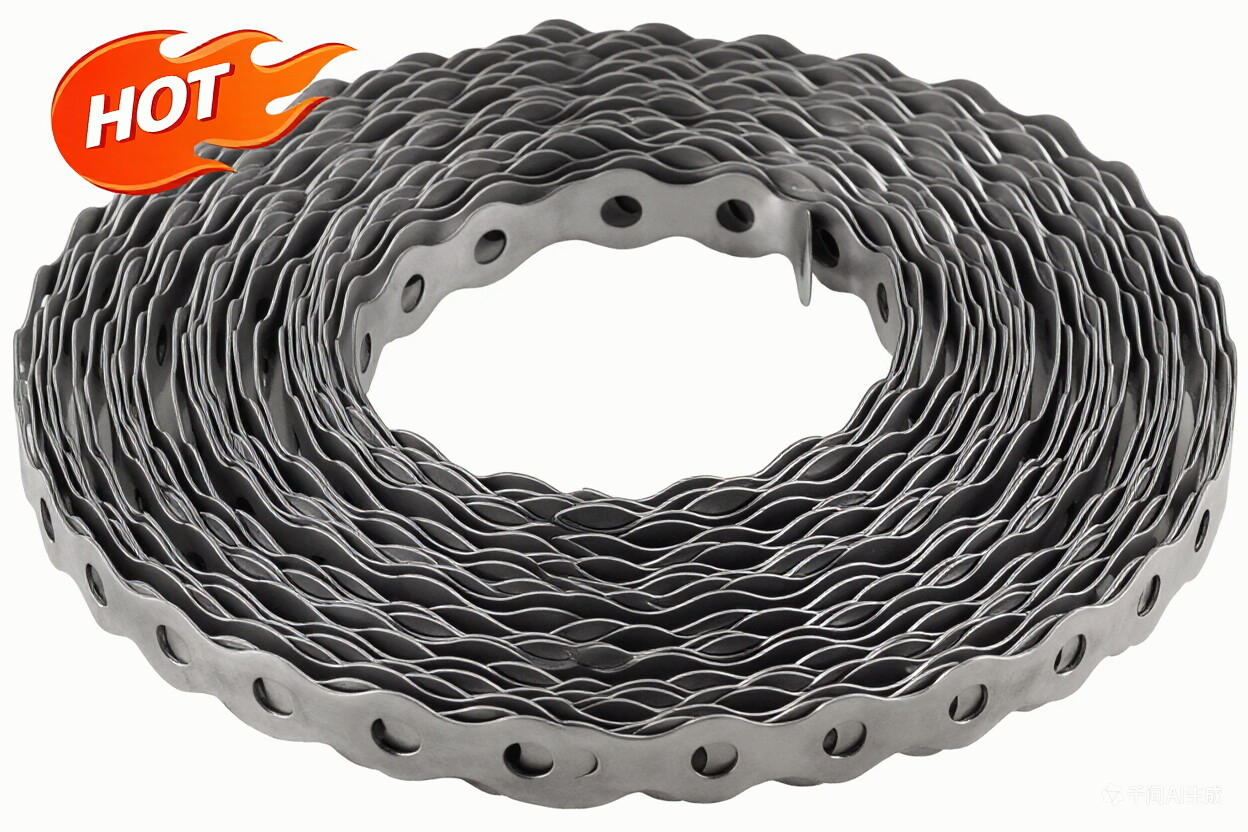

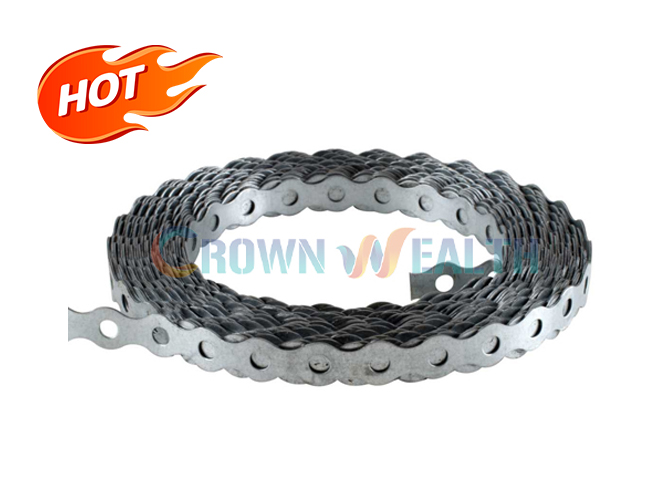

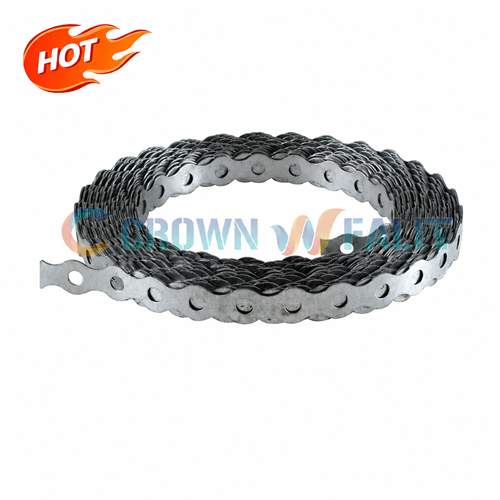

A. Galvanized Steel Fixing Straps (ARB-GAL / ARB-C)

Ideal for harsh outdoor, industrial, and coastal environments where maximum corrosion resistance is critical.

Note:​ "GAL" denotes a full zinc coating. "C" denotes a selective or partial galvanization process. Please confirm specific details with our technical team.

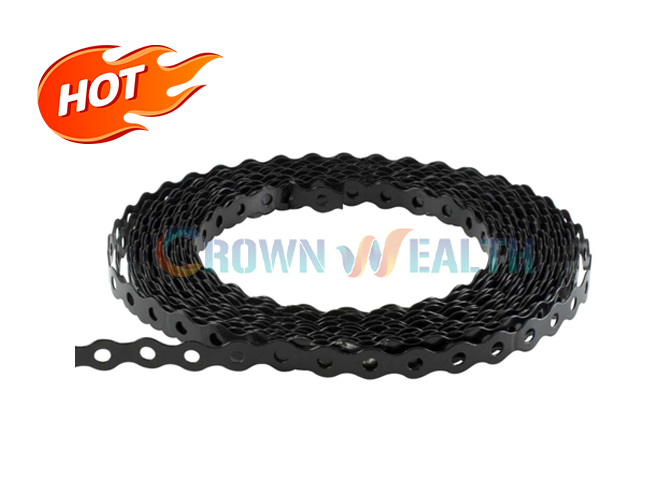

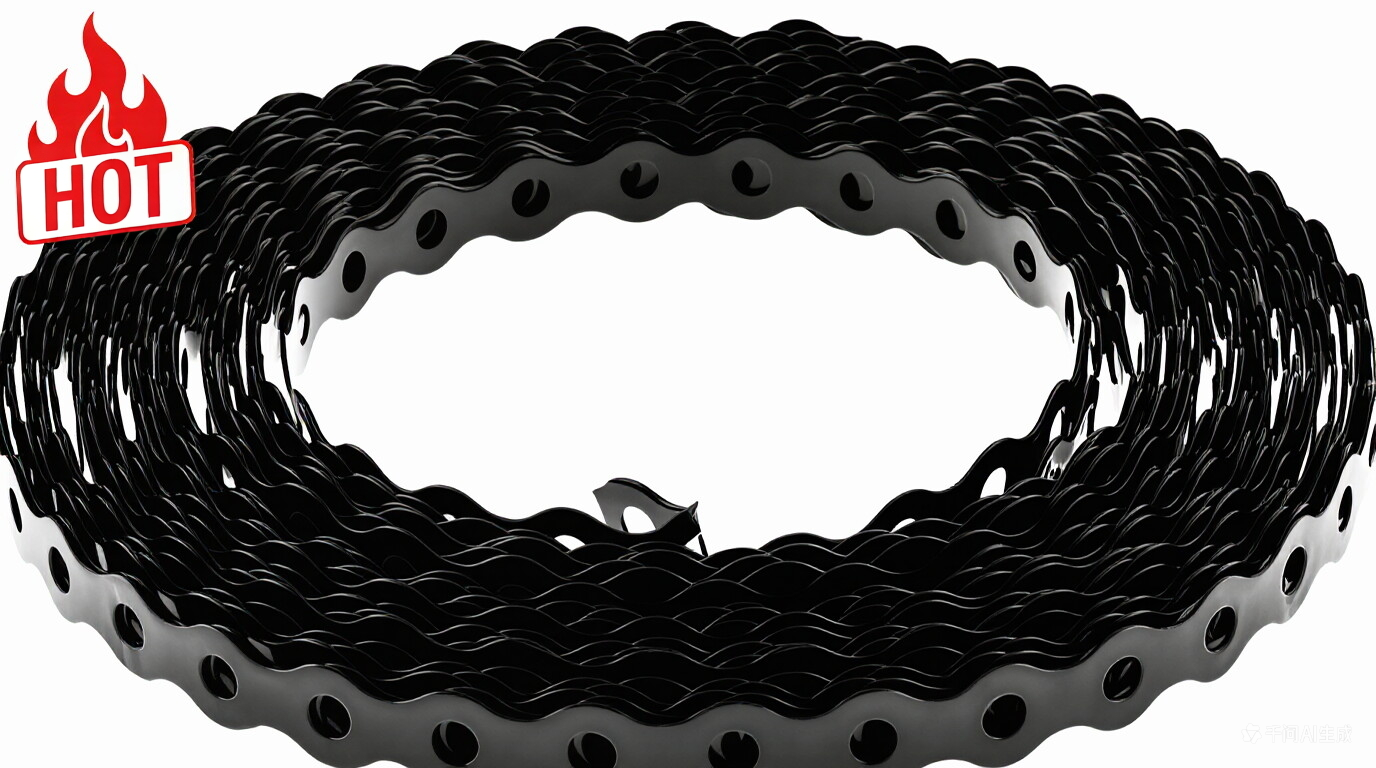

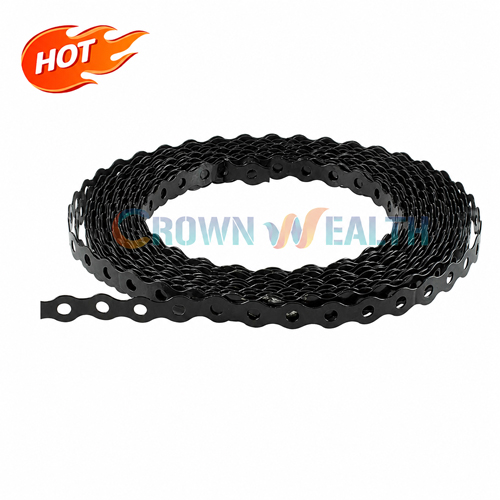

B. Polymer Coated Fixing Straps (Colored Series)

Designed for applications requiring aesthetic appeal, UV protection, or specific color-coding. The coating is applied over a steel core.

Note:​ Color consistency may vary slightly by batch. For critical visual projects, please request samples.

3. Selection Guide: Load Capacity & Applications

The load-bearing capacity is determined by the combination of Thickness (T)​ and Width (W).

Typical Application Scenarios:

• Galvanized Straps:​ Utility poles, solar farm installations, marine/coastal infrastructure, industrial machinery, and underground conduit supports.

• Coated Straps:​ Architectural accents, retail displays, HVAC duct strapping, window frame fixing, and residential wiring management.

4. Ordering Information & Custom Services

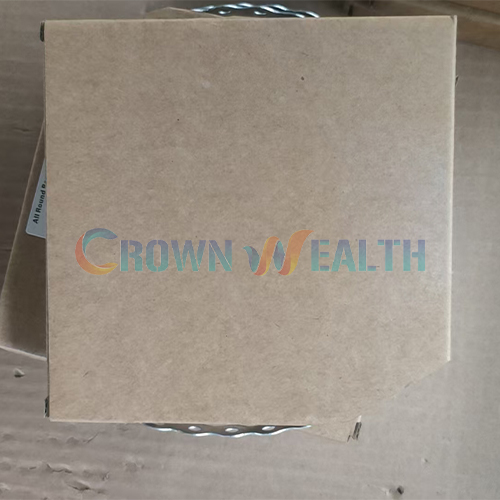

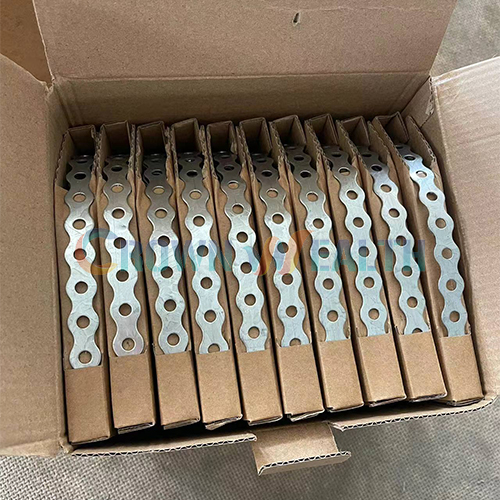

• Standard Packaging:​ All variants are packaged in 10-meter rolls with protective wrapping to prevent transit damage.

• Customization Options:​ We offer flexible manufacturing solutions for:

  • Non-standard lengths and widths

  • Custom coating colors (MOQ may apply)

  • Special hole spacing or patterns

• Inquiry:​ Please specify Part No., Quantity, and any custom requirements when ordering

5. Installation & Usage Guide

Proper installation ensures optimal performance and longevity of the fixing band.

Recommended Tools:

• Cutting:​ Heavy-duty shears, hacksaw, or specialized banding cutters.

• Fastening:​ Cable ties (stainless steel or nylon), self-tapping screws, or bolted clamps.

Installation Steps:

1. Measure & Cut:​ Unroll the band and cut to the required length, allowing extra margin for overlap and tightening.

2. Positioning:​ Wrap the band around the object (pipe, cable bundle, etc.) and pass it through the fixing point (e.g., a wall anchor or another part of the band).

3. Securing:

   • Method A (Using Cable Ties):​ Insert a cable tie through the perforations of the overlapping band ends and tighten securely.

   • Method B (Using Bolts/Screws):​ Align the holes in the band with pre-drilled holes in the structure and fasten with bolts.

4. Tensioning:​ Ensure the band is snug but avoid over-tensioning, which may deform the band or the secured object. For wavy-edge bands, ensure the teeth are fully engaged for maximum grip.

Pro Tip:​ For outdoor applications involving temperature fluctuations, leave a slight amount of slack to accommodate thermal expansion and contraction.

6. Quality Assurance & Compliance

We are committed to delivering products that meet global industry benchmarks.

• Raw Material Sourcing:​ Only high-quality cold-rolled steel coils from certified suppliers are used.

• Coating Standards:

  • Galvanization:​ Meets or exceeds ASTM A653 standards for zinc coating weight and adhesion.

  • Polymer Coating:​ Tested for UV resistance (ASTM G154) and Salt Spray resistance (ASTM B117) to ensure colorfastness and durability.

• Mechanical Properties:​ Tensile strength and elongation rates are tested batch-by-batch to guarantee consistent load-bearing capacity.

• Inspection:​ Every roll undergoes a final visual inspection for coating integrity, hole alignment, and dimensional accuracy before packaging.
