Anchoring Clamp is an important part of modern overhead fiber and utility infrastructure. For network designers, contractors, and procurement teams, understanding the function, specification, and installation of this component helps improve reliability and reduce field maintenance.
What Is an Anchoring Clamp?
An anchoring clamp, also called a drop cable dead-end clamp, secures an aerial fiber cable at a termination point. It is installed where the cable changes direction, reaches a building, or ends at a pole. The fitting holds the cable under controlled tension without transferring harmful compression to the optical fibers.
How an Anchoring Clamp Works
Most anchoring clamps use a body, wedge, bail, or hook. As the cable is pulled, the wedge or gripping element increases contact pressure and creates a self-locking effect. A properly designed clamp distributes load over a suitable cable length, reducing point stress and preventing the cable from sliding.

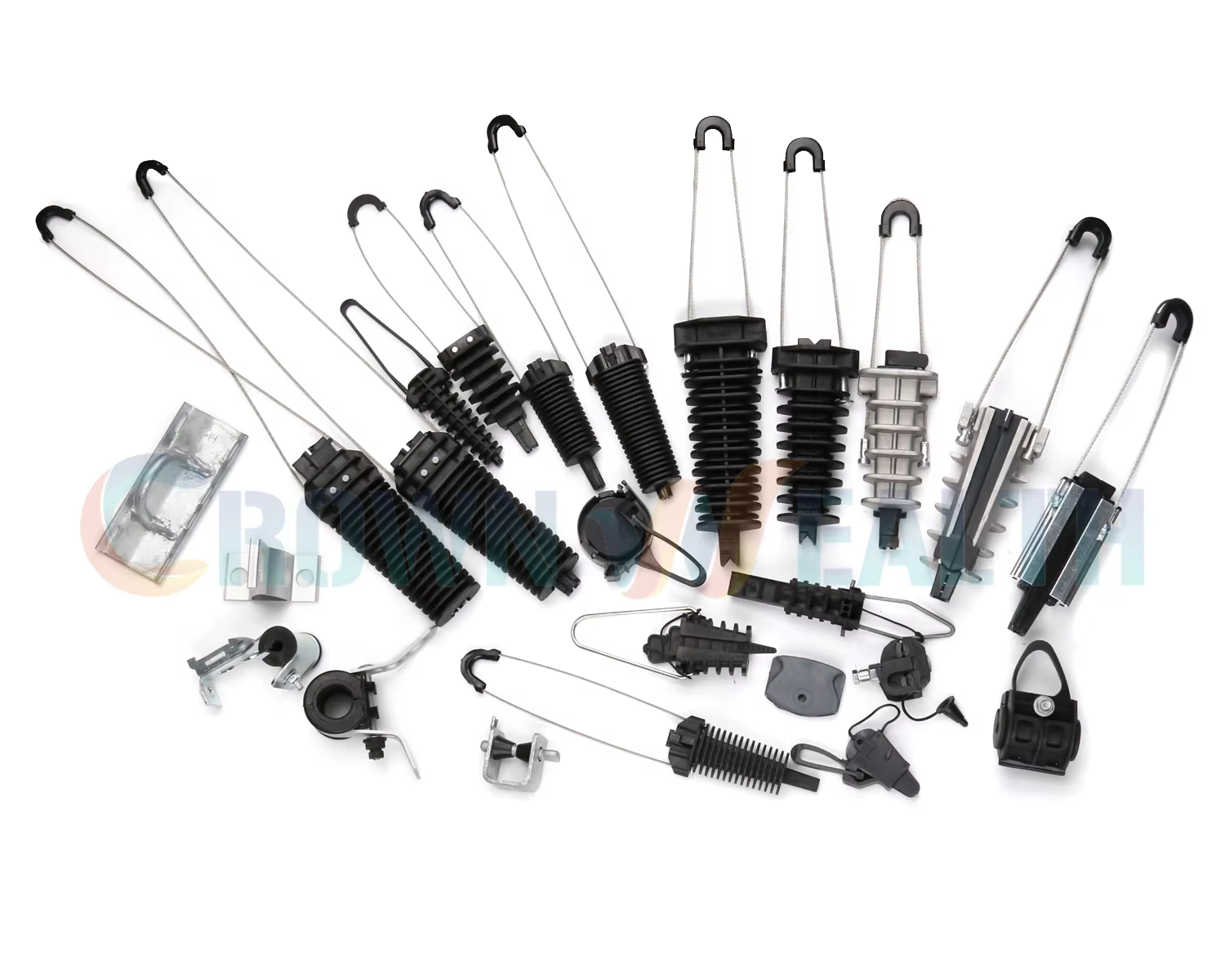

Anchoring Clamp Types for Fiber Drops
Wedge clamps are widely used for flat FTTH drop cable. Plastic anchor clamps suit lightweight service drops and offer electrical insulation. Metal hook clamps are useful where greater mechanical strength or a specific pole attachment is required. The selected design should always follow the cable manufacturer recommendation.
Key Technical Parameters
Important parameters include compatible cable diameter or profile, maximum working tension, minimum breaking load, grip length, bail dimensions, material, and operating temperature. For network planning, also consider span length, wind zone, ice load, pole spacing, and whether the installation is temporary or permanent.
Cable Protection and Bend Radius
The anchoring point must not create a sharp bend or crush the jacket. Use a clamp with rounded contact surfaces and a cable path that respects the minimum bend radius. If the route includes a building corner, combine the anchor clamp with a suitable wall hook or protective guide.
Installation Best Practices
Verify the cable size before installation. Insert the cable fully into the clamp, maintain the correct orientation, and pull the bail or hook into the attachment eye without twisting. Do not hammer the clamp onto the cable or exceed the recommended tension. After installation, check grip security and cable geometry from several angles.
Typical FTTH Deployment Scenarios
Anchoring clamps are used at pole-to-house drops, aerial distribution terminals, rural broadband spans, apartment building entrances, and fiber restoration projects. They are especially important at terminal points where wind-induced movement can otherwise transfer directly to the customer cable.
Why Source Anchoring Clamps from Crown Wealth Group
Crown Wealth Group offers plastic and metal anchoring clamp solutions for different FTTH drop cable profiles. The company supports custom packaging, product labeling, and project-based selection for distributors, contractors, and broadband network operators.
Conclusion
An anchoring clamp is a small but critical part of an aerial FTTH connection. Correct cable matching, controlled tension, and careful installation help protect optical performance and reduce maintenance. Crown Wealth Group can help identify the right anchoring clamp for your network design.
For project-specific cable compatibility, samples, OEM packaging, and volume supply, contact Crown Wealth Group. Our team can help match the hardware to the cable profile, pole structure, environmental conditions, and installation standard.
