Description

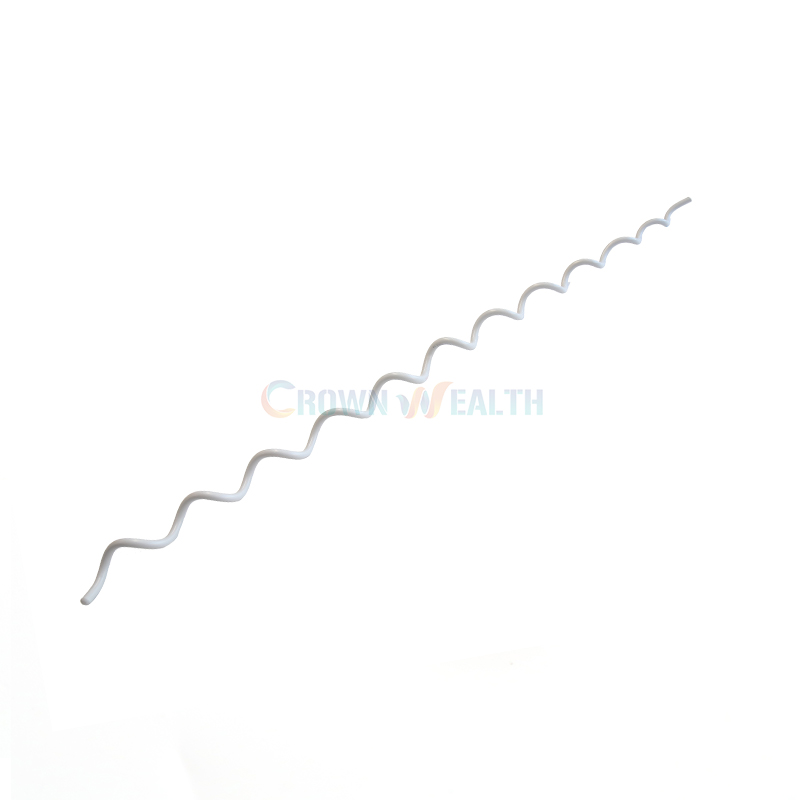

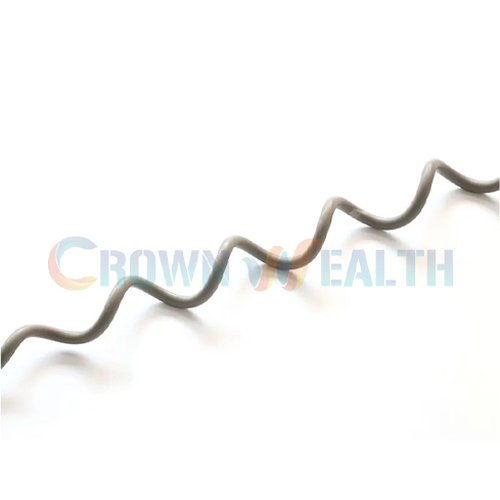

The spiral vibration dampers is made of high-strength, high-elasticity PVC material, which is resistant to high and low temperatures, waterproof, anti-aging, anti-ultraviolet radiation and anti-chemical corrosion. Used for ADSS and OPGW heavy ice areas.
It eliminates or reduces the vibrations that come from the effect of laminar flow wind, and
Prevents damage of the hardware fittings and the cables.
Features:
Material: PVC
Suitable Cable Diameter: 8.0-19.3mm,etc
Package: Carton box
Application: ADSS and OPGW
| Parts No. | Dia. Cable /mm |
Total Length /mm |
Weight /kg |
| CW-FL0830126 | 6.35829 | 1260 | 0.22 |
| CW-FL1170130 | 8.30-11.70 | 1300 | 0.28 |
| CW-FL1430135 | 11.71-14.30 | 1350 | 0.30 |
| CW-FL1930167 | 14.31-19.30 | 1670 | 0.66 |
