Description

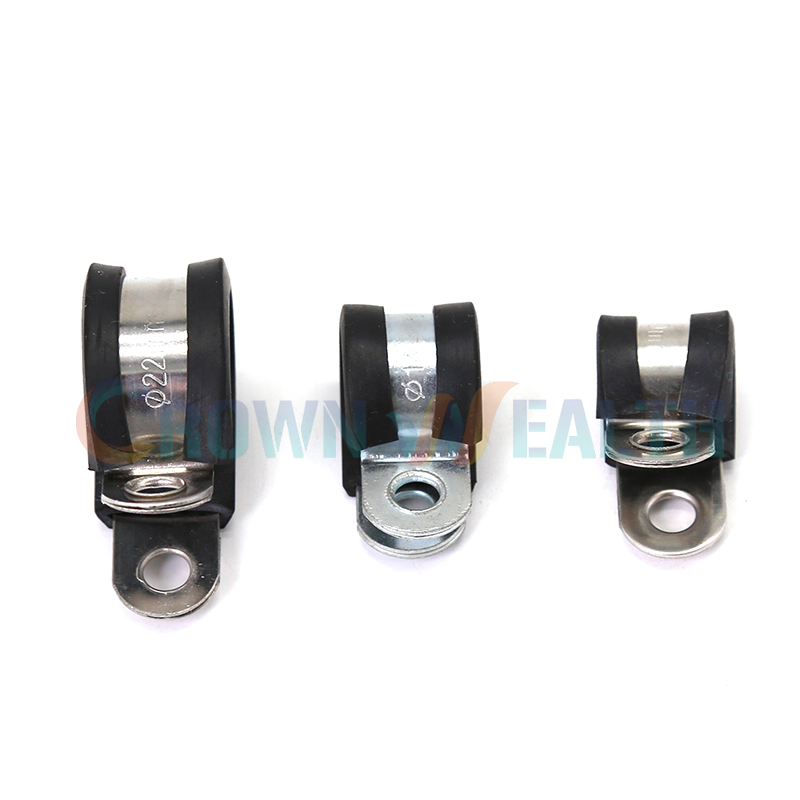

P Clips are primarily used for securing pipes, tubes, and cables in place. The rubber profile prevents vibrations from being transmitted, safeguards against scratching and also insulates.
Rubber Lined Stainless Steel P Clips are designed with flexible steel or stainless steel one-piece band with an Ethylene Propylene Diene Monomer (EPDM) rubber liner. All clips have a pressed-in strengthening rib which keeps the clip flush with the surface it’s bolted to.
The band features a stepped design to allow the clip to sit flush, with the rubber liner in place. The single-piece construction means that there are no joints which make the clip very strong.
The upper hole has an elongated design allowing easy fitting of the clip.
The rubber liner is manufactured in a corresponding profile to be secure in its position on the clip and ensures a tight fit as well as vibration damping and sound insulation.
EPDM rubber offers several advantages over alternatives such as a wide operating temperature range, resistance to UV (ultraviolet) weathering and resistance to creep. P clips feature a stepped design to allow the clip to sit flush with the rubber liner in place.
Features
● Material: Stainless steel with EPDM, or carbon steel with EPDM
● Surface Treatment: Carbon steel with Zinc plating
● P Clips are available in all of the most important standard sizes.
● Operating temperature range -50°C to 150°C.
● Good UV weathering resistance
● Offers good resistance to creep
● Delivers good abrasion resistance
● Advanced resistance to ozone
● Highly developed resistance to ageing
● Halogen Free
● Reinforced step not required
● OEM production is accepted.
[General FAQ]
Q: Are you a factory or a trading company?
A: We are Hebei Crown Wealth Hardware Factory. We handle everything from production to R&D in-house, ensuring better prices and quality control for you.
Q: Can I be your agent?
A: Yes! We warmly welcome agents worldwide. Let's work together to grow your market and build a strong partnership.
Q: Do you accept customization? (OEM/ODM Available)
A: Yes, we do! Whether it's a drawing or a physical sample, we can make it for you. Our design team is ready to help customize products specifically for your brand.
Q: Is the sample available?
A: Yes, samples are available. We encourage you to test our quality before placing a bulk order.
Q: Are the products tested before shipping?
A: Definitely. No product leaves our factory without passing strict quality checks. We guarantee everything is perfect before it reaches you.
Q: What is your quality guarantee?
A: We have a strict QC system covering every step of production. All our products meet international standards, so you can buy with confidence.
| PART NO. | SS BAND WIDTH | DIAMETER | BAND THICKNESS |
| CWC-RLSPC | 9 mm | 4-36 mm | 0.5 mm |
| 12 mm | 4-40 mm | 0.5 mm | |
| 15 mm | 3-14 mm | 0.6 mm | |
| 15-110 mm | 0.8 mm | ||
| 20 mm | 10-24 mm | 0.8 mm | |
| 25-74 mm | 1.0 mm | ||
| 25 mm | 12-49 mm | 1.0 mm | |
| 50-100 mm | 1.2 mm |
