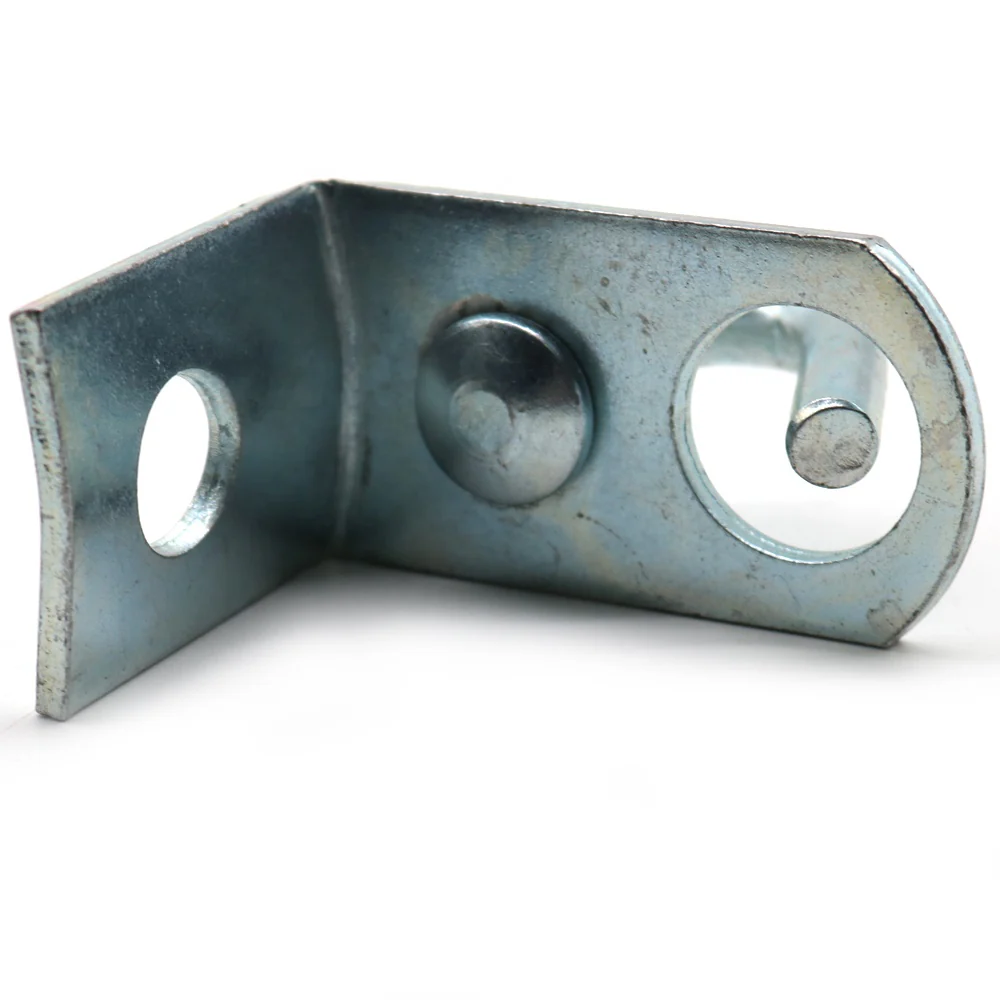

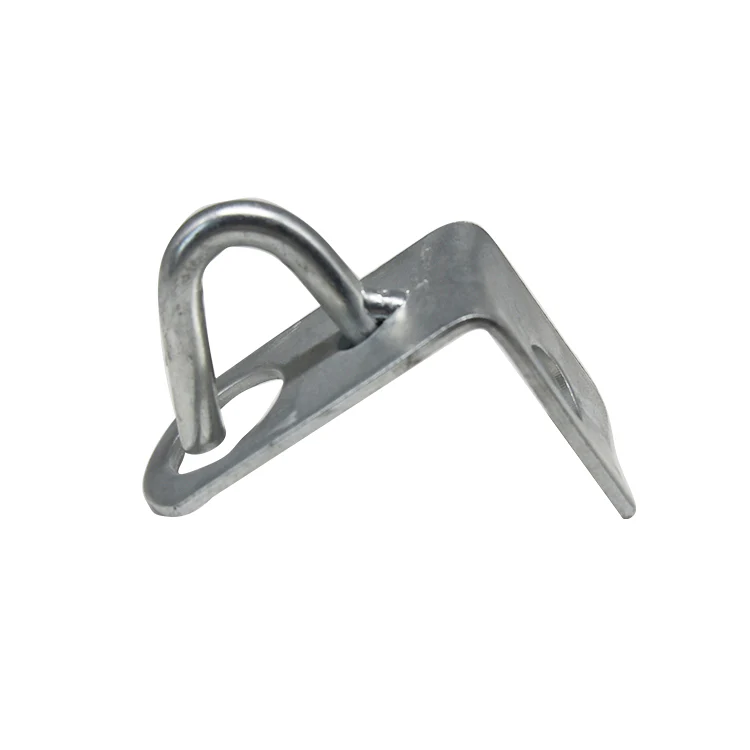

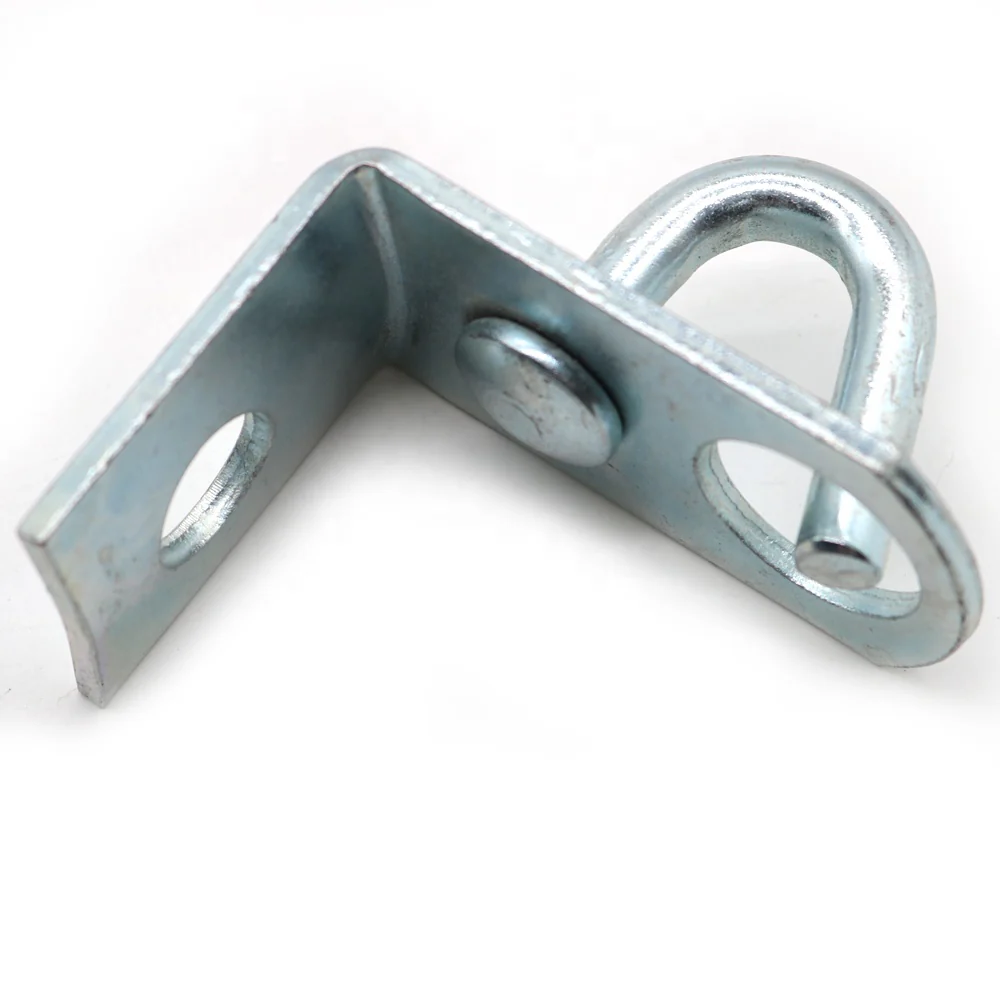

The Drop Cable Angle Hook (also referred to as a Wall Angle Draw Hook or FTTH Drop Cable Draw Hook) is a tension bracket specifically designed for outdoor overhead FTTH (Fiber to the Home) network constructions. It is used to tension or hook drop wire clamps together with compatible fiber optic drop cables.
This hook is suitable for installation on poles or walls (wooden, metal, or concrete surfaces) using bolts or screws. Manufactured from high-strength galvanized steel (or stainless steel/aluminum), it offers excellent corrosion resistance, high mechanical strength, and superior environmental stability, despite its compact and lightweight design. It is typically applied in conjunction with tension or suspension drop clamps and supports cable spans generally ranging from 30 to 50 meters (up to 70m for some models).
Technical Specifications Table
|
Parameter |
Specification |
|---|---|
|
Product Name |
Drop Cable Angle Hook / Wall Angle Draw Hook |
|
Application |
FTTH / FTTB / FTTX Drop Cable Installations |
|
Bracket Type |
Tension Hook |
|
Material |
Galvanized Steel (Standard), Stainless Steel, or Aluminum |
|
Minimum Breaking Load (MBL) |
2 kN |
|
Cable Span Capacity |
30 - 50 meters (some models up to 70m) |
|
Installation Surface |
Wood, Metal, Concrete (via bolt/screw) |
|
Typical Dimension |
75 × 50 × 40 mm (may vary by model) |
|
Typical Weight |
Approx. 160 g |
|
Surface Treatment |
Zinc Galvanization (corrosion resistant) |
|
Features |
Compact, Lightweight, High Strength, Weather Resistant |
