In the world of electrical transmission and telecommunications, installing cables in complex terrains—such as densely wooded areas, urban architectures, or across difficult spans—presents unique challenges. Ensuring that these vital lines remain secure, stable, and protected from environmental stressors is paramount. This is where the Span Clamp becomes an indispensable component of your hardware arsenal.
This guide will walk you through everything you need to know about this critical cable accessory, from its core function and design to material science and technical specifications.

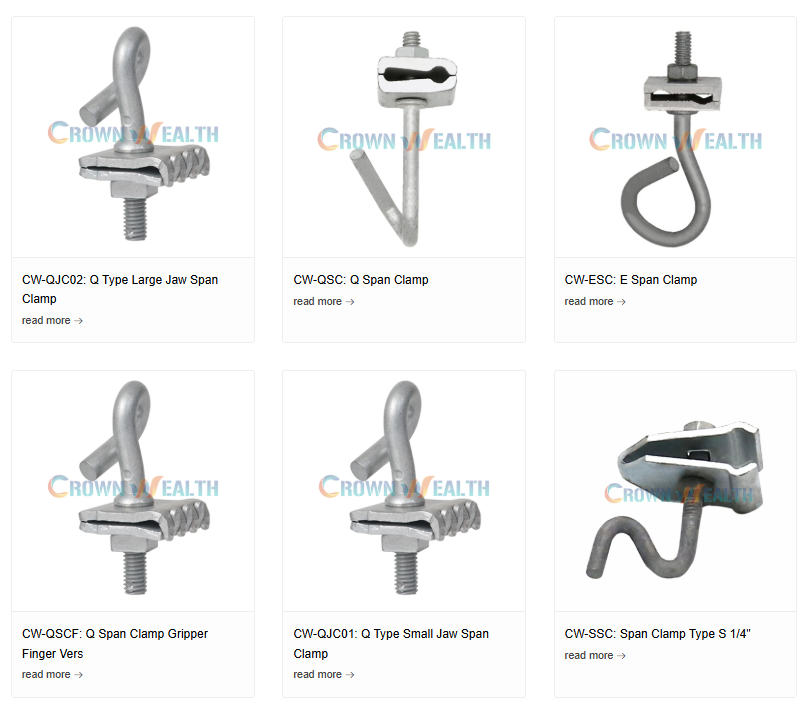

What is a Span Clamp?
A Span Clamp is a specialized cable accessory engineered specifically to attach aerial cables to a supporting messenger wire. Unlike simple ties or wraps, a span clamp provides a robust, mechanical connection that suspends the cable safely above ground level.
Its primary purpose is twofold:
-
Secure Suspension: It holds the cable firmly in place along the messenger strand.
-
Damage Mitigation: By keeping the cable elevated and secured, it minimizes the risk of vibration-induced fatigue and protects against physical damage from environmental factors like wind, falling branches, or debris.
This makes it the ideal solution for transmission lines navigating wooded areas or sites with complex architectural obstacles.
Engineering & Design: Built for Reliability
At first glance, a span clamp appears simple, but its design is optimized for performance and ease of use. Each Hbcrownwealth span clamp consists of three key components working in unison:
-
Precision-Formed Clamp Plates: These two plates are shaped to cradle the cable securely without sharp bends that could damage the conductor. They distribute pressure evenly to prevent deformation of the cable strands.
-
Forged Hook Bolt: The hook bolt is designed to easily engage with the messenger wire, providing a strong anchor point. Its forged construction ensures high tensile strength.
-
Staked Hexagonal Nut: To improve operational efficiency, the nut is securely staked to the bolt threads. This prevents the nut from getting lost during transit or, more importantly, during on-site installation—a small detail that saves significant time and frustration for lineworkers.
Material Options: Choosing the Right Protection
Environmental conditions vary drastically from one project to another. To meet these demands, we offer versatile material solutions tailored to specific climates and requirements.
Aluminum Alloy Plates (5052 Grade)
-
Best For: Coastal areas, humid environments, or projects where weight is a concern.
-
Benefits: Manufactured from high-grade 5052 aluminum, these clamps offer an exceptional balance of lightweight handling and excellent corrosion resistance. They are non-magnetic and highly resistant to saltwater corrosion.
Galvanized Steel Plates
-
Best For: Industrial zones, heavy-duty applications, and areas requiring maximum mechanical strength.
-
Benefits: Available with either Hot-Dip Galvanizing (HDG) or Mechanical Galvanizing, these clamps are built to last. Fully compliant with ASTM standards, they provide a thick, robust layer of zinc protection, ensuring superior rust prevention and extended service life even in harsh conditions.
Technical Specifications
Understanding the precise fit is crucial for safety and performance. Our standard Span Clamps are designed to accommodate a wide range of common cable sizes.
|
Feature |
Specification |
|---|---|
|
Cable Range |
1/4" to 7/16" (6mm – 11mm) |
|
Cable Type |
Stranded Aerial Cables |
|
Components |
Clamp Plates, Forged Hook Bolt, Hex Nut |
Why Choose Hbcrownwealth?
When sourcing cable accessories, partnering with a reliable manufacturer is just as important as the product quality itself. Hbcrownwealth stands as a leader in the industry for several reasons:
-
ISO-Certified Quality: Our manufacturing processes meet international standards for quality management, ensuring consistency and reliability in every batch.
-
OEM & ODM Services: We understand that projects have unique requirements. We offer flexible Original Equipment Manufacturing (OEM) and Original Design Manufacturing (ODM) services to meet your specific needs.
-
Factory-Direct Pricing: As a direct manufacturer and exporter, we eliminate middlemen to provide competitive wholesale pricing without compromising on quality.
Conclusion
The Span Clamp is more than just a piece of metal; it is a critical link in the chain of your aerial cable infrastructure. By choosing the right material—be it lightweight aluminum or heavy-duty galvanized steel—and a trusted manufacturer, you ensure the longevity and safety of your transmission lines.
Ready to equip your next project with high-quality Span Clamps? Contact Hbcrownwealth today for a factory-direct quotation.
