Introduction: The Evolution of FTTH Drop Cable Hardware
In the rapidly expanding world of Fiber to The Home (FTTH) networks, the reliability of aerial installations is paramount. Traditional metal anchor clamps, while effective, often face challenges in corrosive environments and high-density deployments. Enter the next generation of drop wire hardware: the UV-Resistant Plastic Anchor Clamp. Specifically engineered for modern fiber optic networks, this all-polymer solution offers a lightweight, durable, and space-saving alternative for securing 5-6mm round FTTH drop cables.
This article explores the design, benefits, and technical specifications of this innovative plastic anchoring solution, designed to optimize your fiber deployment strategy.

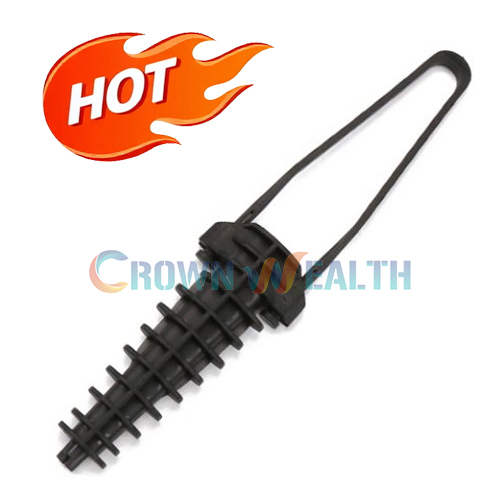

What is a Plastic FTTH Anchor Clamp?
An FTTH anchor clamp (also known as a drop wire clamp or dead-end clamp) is a fitting used to terminate and secure the messenger wire or strength member of a fiber optic cable to a support structure, such as a pole or building. Unlike standard clamps that rely on metal components, this advanced version utilizes high-strength thermoplastic polymers for both the body and the bail (the hanging loop).
Its primary application is in short-span aerial drops where a robust, non-conductive, and weatherproof connection is required.
Key Design Features & Technology
This plastic anchor clamp is not just a metal clamp with plastic parts; it is re-engineered from the ground up for fiber optics.
-
Enveloping Wedge Grip Technology:
At the heart of the clamp are its specially designed internal wedges. Instead of a simple pinch, these wedges "envelope" the drop cable, creating a 360-degree gripping surface. This design ensures:
-
A tighter, more secure hold on the 5-6mm cable jacket.
-
Reliable performance even under dynamic loads caused by wind, ice, or temperature fluctuations.
-
Prevention of cable slippage during installation or maintenance.
-
-
Ultra-Compact & Space-Saving Profile:
One of the most significant advantages is its slim form factor. Measuring only 53mm wide and 23mm thick, this clamp is dramatically narrower than traditional metal counterparts.
-
High-Density Ready: Multiple clamps can be installed side-by-side on a single pole bracket or hook without overcrowding.
-
Improved Organization: Ideal for dense urban environments or MDU (Multi-Dwelling Unit) installations where space on the strand is limited.
-
-
All-Plastic, Non-Corrosive Construction:
Both the clamp body and the bail are constructed from high-grade UV-resistant Nylon (PA66).
-
No Rust, Ever: Eliminates the risk of corrosion common with steel or zinc-coated clamps, especially in coastal or industrial areas.
-
Reduced Weight: Significantly lighter than metal clamps, lowering shipping costs and making handling easier for technicians on ladders or poles.
-
Non-Conductive: Provides an extra layer of safety for line workers.
-
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Product Type |
Plastic Anchor Clamp / Drop Wire Clamp |
|
Compatible Cable Size |
5 – 6 mm Round FTTH Drop Cable |
|
Primary Material |
UV-Resistant Nylon (PA66) with Stabilizers |
|
Bail Material |
Reinforced Thermoplastic |
|
Minimum Breaking Load |
3 kN (Kilonewtons) |
|
Overall Dimensions |
53 mm (Width) × 23 mm (Thickness) |
|
Installation Method |
Tool-free, Hand-tightened |
Why Choose a Plastic Clamp Over Metal?
Switching to a polymer-based anchor clamp offers tangible benefits for network operators:
-
Faster Deployment: The tool-less design allows technicians to install the clamp quickly by hand, snapping it onto the cable and pulling it tight. This reduces labor time per drop.
-
Long-Term Durability: The UV inhibitors mixed into the nylon ensure the clamp will not become brittle or degrade after years of sun exposure.
-
Cost-Effective Transport: The lightweight nature of plastic means you can ship more units per box, reducing your overall logistics footprint.
Conclusion
For telecom engineers and network installers looking to upgrade their FTTH toolkit, the UV-resistant plastic anchor clamp represents a smart evolution. Combining Enveloping Wedge Technology with a corrosion-proof build and a space-saving design, it addresses the core challenges of modern aerial fiber deployment. If you are working with 5-6mm round drop cables, this clamp is an essential component for a reliable, long-lasting connection.
