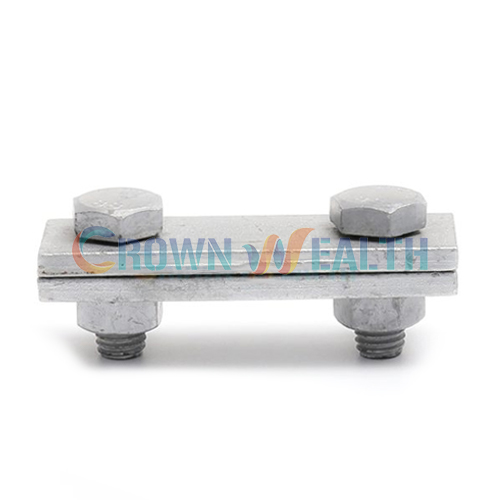

CW-CCC: Crossover Cable Clamp

1. Product Overview

The CW-CCC Crossover Cable Clamp​ is designed for securing and supporting cables on utility poles during straight-line runs. It is engineered to be used with a 3/4″ through bolt, which also functions as the primary clamping member. Compatible with strand sizes ranging from 1/4″ to 3/8″, this clamp provides a robust and reliable solution for overhead cable management.

2. Application & Function

This clamp is primarily used for securing single cables, bundled cables, and steel strands. As a type of suspension clamp, it facilitates a flexible cable pathway by transferring mechanical loads from one point to another. It allows conductors to be suspended at various angles and positions, ensuring stability across complex routing configurations.

3. Key Features

• Dual-Purpose Design:​ Utilizes a standard 3/4″ through bolt both for mounting and as a clamping mechanism, reducing hardware requirements.

• Flexible Installation:​ Can be mounted horizontally or vertically to meet specific job site requirements.

• Robust Construction:​ Manufactured from heavy-duty galvanized steel to withstand harsh outdoor environments and resist corrosion.

• Versatile Compatibility:​ Accommodates strand sizes from 1/4″ to 3/8″ and supports various cable geometries (circular or oval sections).

4. Structural Components

The main components of the CW-CCC assembly include:

• Body:​ The main structural housing.

• Cable Attachment Mount:​ Interface for securing the cable.

• Straps:​ For additional binding and support.

• Washers:​ Distributes pressure evenly.

• Hardware:​ Includes the through bolt and associated fittings.

5. Technical Specifications

6. Typical Applications

• Overhead power distribution lines

• Telecommunications and fiber optic cable routes

• Street lighting and CCTV pole wiring

• Industrial plant overhead cabling systems
